Wireless Sensorbox P1
From 1 January 2025, Ratio is launching a new product:
the wireless dynamic load balancer: Sense Wireless P1

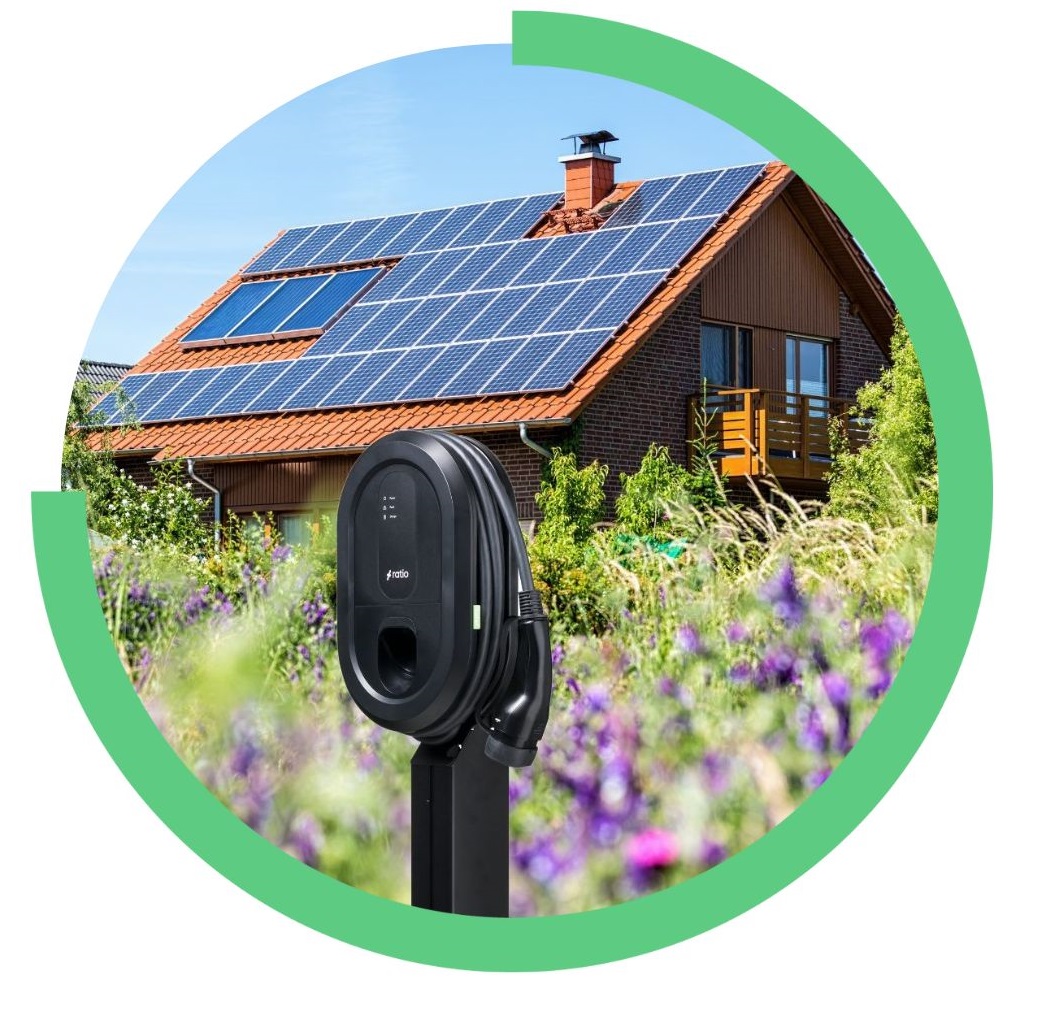

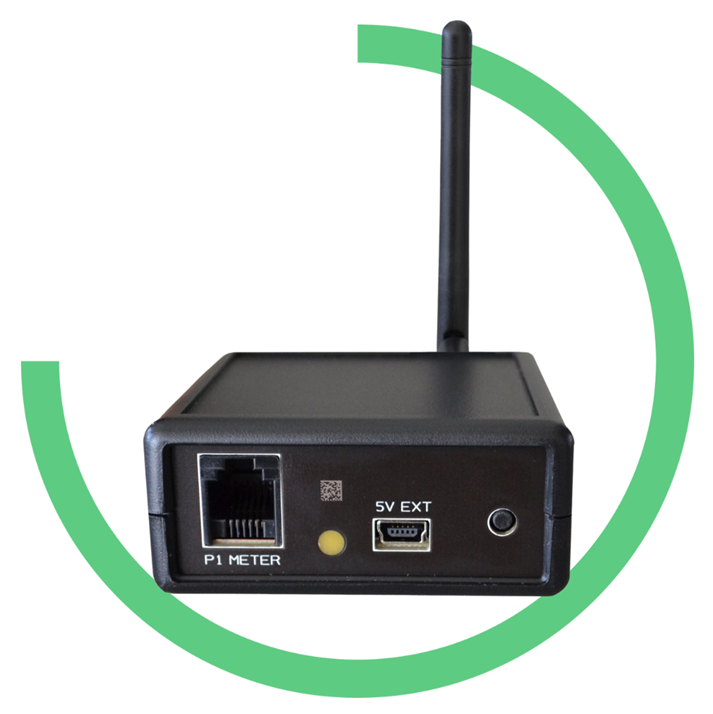

Over the past few months, we have been working hard to develop this new product. Field tests have recently been successfully completed and from 1 January the Wireless Sensorbox P1 will be available for delivery. This load balancing kit is ideal for situations where wiring between ev charger and main cabinet is difficult or expensive. This could be because an old charging station was already installed without load balancing. With the Wireless Sensorbox, a new Ratio EV charger can simply be hung and there is no need to open up the ground. The Sense box is placed in the meter cabinet and connected to the P1 port of the Smart Meter via the supplied data cable. The Ratio EV charger (manufactured from 01-01-2025) contains a wireless receiver. This makes simple and fast contact between the Load Balancer in the meter cabinet and the charging station. After this, maximum safe and fast charging is always possible.
changes:
The Ratio Solar (38870, 38871 and 38872) are no longer supplied with DLB kit as standard. You can choose the version with CT clamps to be wired or the new Sense Wireless P1.
The Ratio Smart is going out of the portfolio. The Ratio Smart was the Ratio Solar without DLB kit
terms:
Wireless Sensorbox P1 (Ratio item number 38809) works only in combination with P1 meter, not with CT clamps.
Compatible with Ratio's online chargers: Ratio io6, Ratio Solar
Check if the Smart Meter has been tested by Ratio. Go to our FAQ, look under the heading ‘Dynamic Load Balancing’ and click on the question ‘Can Dynamic Load Balancing also be done via the P1 Port of the smart meter?’
The operation of the wireless Sense kit depends on 2 things:
- Distance between Sensorbox and the ev charger. The technique is the same as that of a car key and a car, to give an indication of range.
- Certain material between Sensorbox and the ev charger disrupt or deteriorate communication (corrugated iron, for example)
Overview items and prices as of 01-01-2025:
38870 38871 38872 38801 38803 38805 38809 | Solar 11-22kW Socket Solar 11-22kW 5m Solar 11-22kW 7,5m DLB Sense kit 3F 63A DLB Sense kit 3F 125A DLB Sense kit 3F 250A Sense Wireless P1 | € 652,07 € 660,33 € 742,98 € 106,61 € 139,67 € 164,46 € 99,00 | € 789,00 € 799,00 € 899,00 € 129,00 € 169,00 € 199,00 € 119,79 | 8720629963488 8720629963457 8720629963464 8720629963266 8720629964225 8720629964362 8720629965529 |
