Shore Power Assemble Plugs

Shore Power Plugs

Show more

Show fewer

The Ratio Shore Power plugs are also available as a assemble version:

recommended cable up to max. 10A: H07BQ-F 3G1,50mm²
recommended cable up to max. 16A: H07BQ-F 3G2,50mm²
recommended cable up to max. 25A: H07BQ-F 3G4,00mm²
recommended cable up to max. 32A: H07BQ-F 3G6,00mm²
recommended cable up to 50A up to 25m length: H07BQ-F 3G10,00mm²

	Article	Description	MAX CURRENT	PROTECTION CLASS	Order

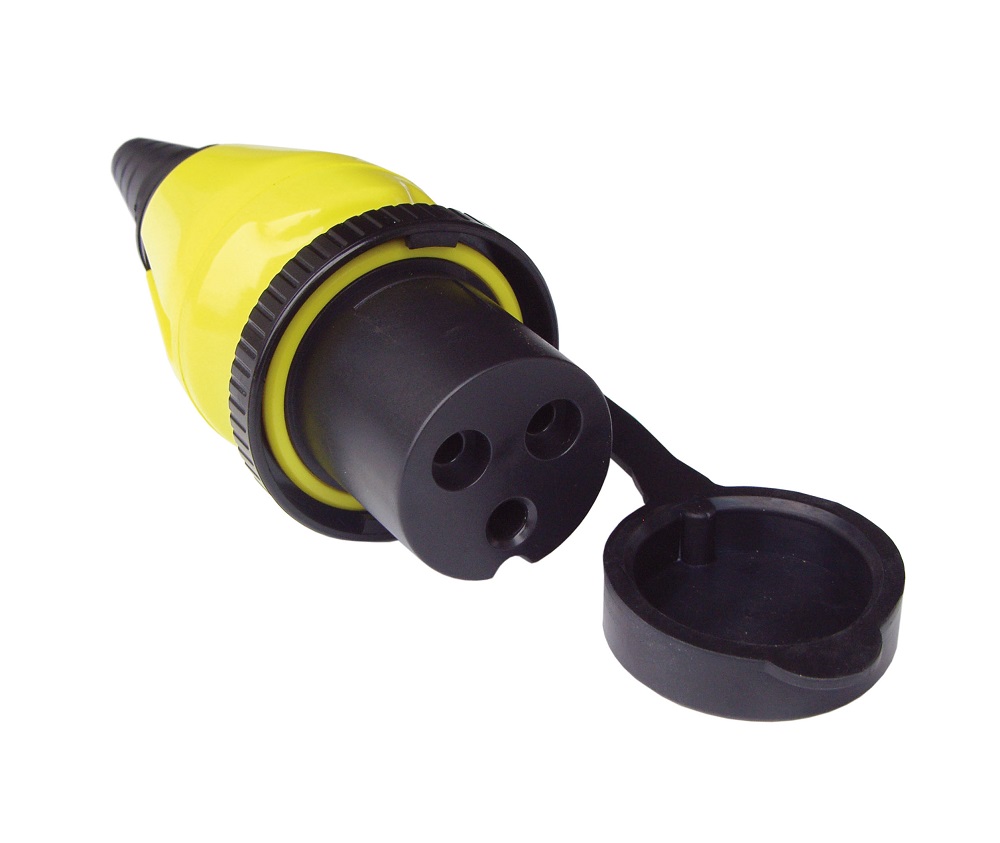

	MP16-110	Shore Power MP16 Plug	16A/250V	IP44
MAX CURRENT 16A/250V PROTECTION CLASS IP44 For heavy conditions according to VDE No NEMA designation Other Nominal current 16 A Nominal voltage 250 V Number of poles 3 RAL-number 1016 Colour Yellow Suitable for protective contact pin No Connection system Screwed terminal Insert direction Straight Degree of protection (NEMA) Other Degree of protection (IP) IP44 Halogen free No Material quality Thermoplastic Material Plastic Model Other more info »

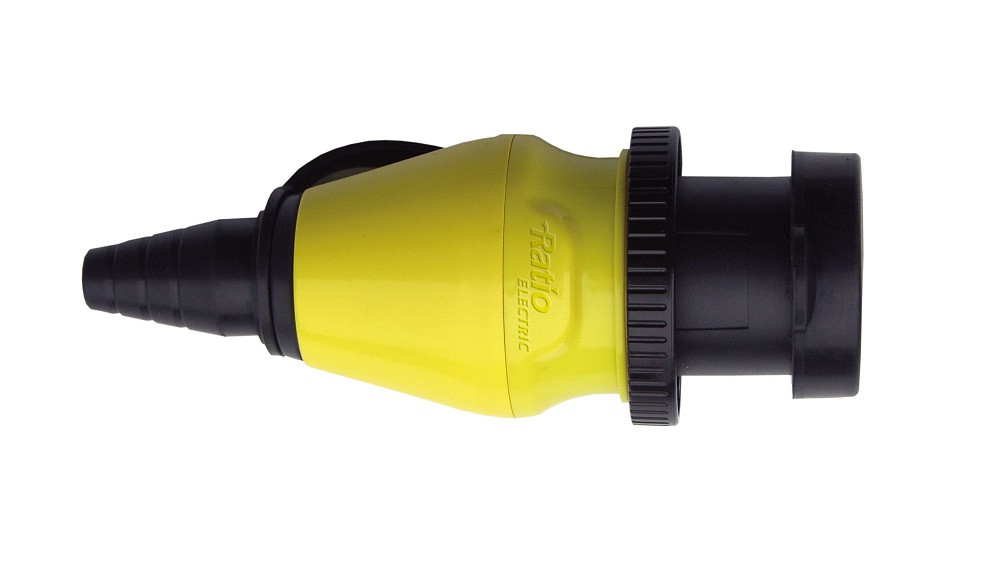

	MP32-110	Shore Power MP32 Plug	32A/250V	IP44
MAX CURRENT 32A/250V PROTECTION CLASS IP44 For heavy conditions according to VDE No NEMA designation Other Nominal current 32 A Nominal voltage 250 V Number of poles 3 RAL-number 1016 Colour Yellow Suitable for protective contact pin No Connection system Screwed terminal Insert direction Straight Degree of protection (NEMA) Other Degree of protection (IP) IP44 Halogen free No Material quality Thermoplastic Material Plastic Model Other more info »
	MP50-110	Shore Power MP50 Plug	50A/250V	IP44
MAX CURRENT 50A/250V PROTECTION CLASS IP44 For heavy conditions according to VDE No NEMA designation Other Nominal current 50 A Nominal voltage 250 V Number of poles 3 RAL-number 1016 Colour Yellow Suitable for protective contact pin No Connection system Screwed terminal Insert direction Straight Degree of protection (NEMA) Other Degree of protection (IP) IP44 Halogen free No Material quality Thermoplastic Material Plastic Model Other more info »
