PDU Basic International

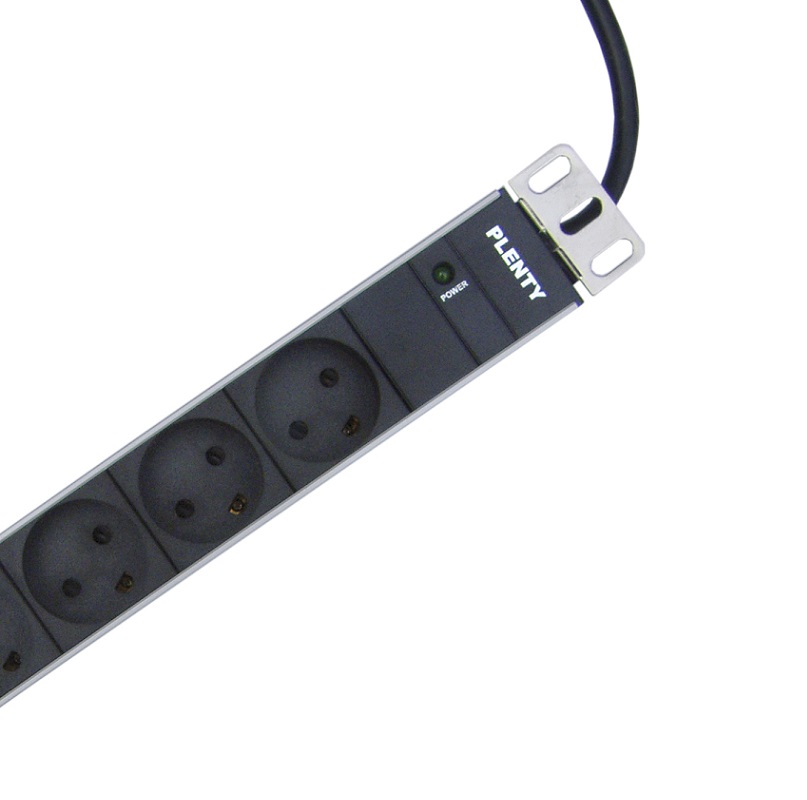

Basic PDU with inlets and outlets for the UK, US, Denmark and with earth pins
- PDU housing Anodised aluminium
- Includes universal mounting brackets
Item no.

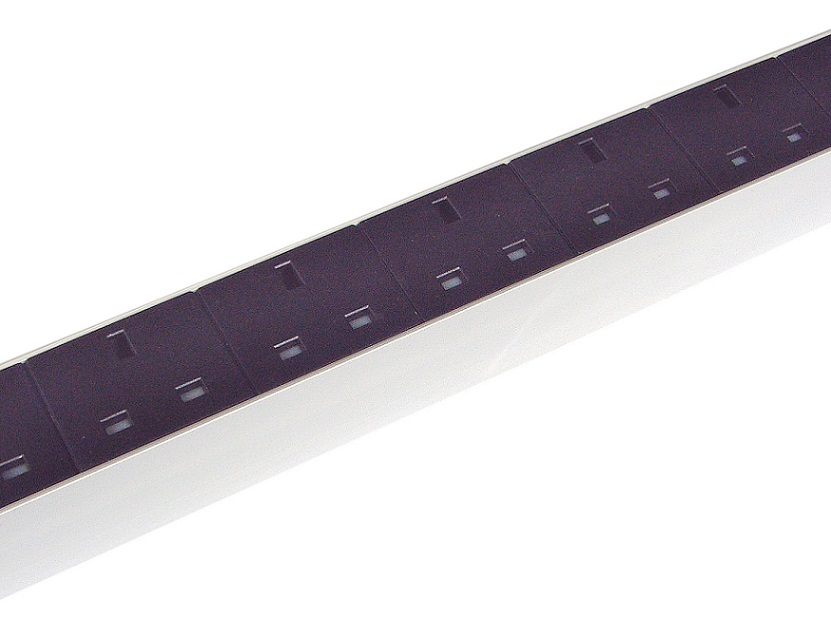

PLA416-7UK
MAX. CURRENT (A)
13
RATED VOLTAGE / PHASE
230V / 1~
OUTLETS
7x UK
INPUT PLUG
UK
LENGTH HOUSING (mm)
19"
Item no.

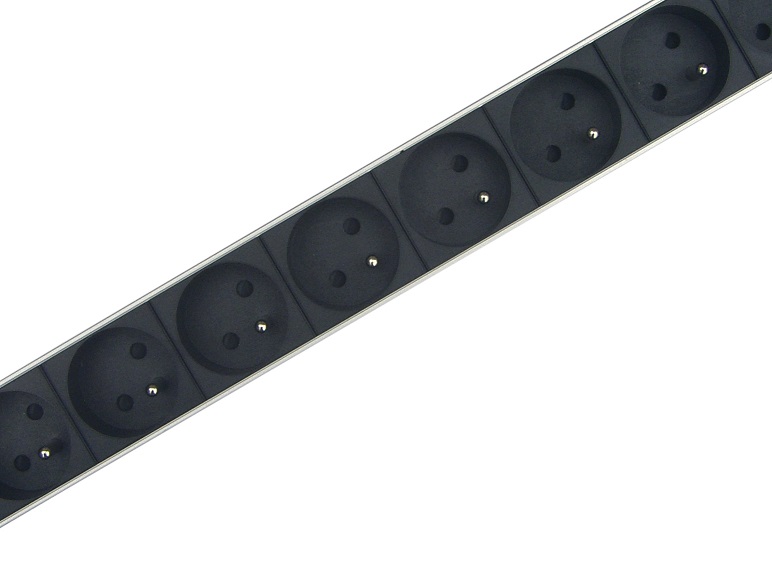

PLA416-9PA
MAX. CURRENT (A)
16
RATED VOLTAGE / PHASE
230V / 1~
OUTLETS
6x Earth-pin
INPUT PLUG
Schuko
LENGTH HOUSING (mm)
19"
Item no.
PLA416-8RC14-PA
MAX. CURRENT (A)
10
RATED VOLTAGE / PHASE
230V / 1~
OUTLETS
8x Earth-pin
INPUT PLUG
C14
LENGTH HOUSING (mm)
19"
REMARKS
red outlets, 10A fuse
| Article | Description | MAX. CURRENT (A) | RATED VOLTAGE / PHASE | OUTLETS | INPUT PLUG | LENGTH HOUSING (mm) | REMARKS | Order | |
| PLA416-7UK | PDU 1x13A, 7xUK, UK Power Cord | 13 | 230V / 1~ | 7x UK | UK | 19" | |||
MAX. CURRENT (A) 13 RATED VOLTAGE / PHASE 230V / 1~ OUTLETS 7x UK INPUT PLUG UK LENGTH HOUSING (mm) 19" REMARKS Colour Black With mounting material Yes Temperature measurement No Ampere meter No With fuse No With LED indication No With display No SNMP No Control function No With meter No Switchable No Mains filter No Supply voltage 230 V Height 44.4 mm Number of height units 1 Number of other socket outlets 0 Number of socket outlets Swiss standard type 25 0 Number of socket outlets Swiss standard type 23 0 Number of socket outlets Swiss standard type 15 0 Number of socket outlets Swiss standard type 13 0 Number of socket outlets British Standard BS1363 7 Number of C20 socket outlets 0 Number of C19 socket outlets 0 Number of C13 socket outlets 0 Number of socket outlets with earth pin 0 Number of socket outlets with protective contact CEE 7/3 (type F) 0 Number of miniature circuit breakers (MCB) 0 Number of phases 1 Type of electric connection British Standard Electrical connection Connection cable with plug Mounting direction Horizontal Mounting dimension (standardised) 482.6 mm (19 inch) | |||||||||
| PLA416-9PA | PDU 1x16A, 9xEarth pin, Schuko Power Cord | 16 | 230V / 1~ | 6x Earth-pin | Schuko | 19" | |||
MAX. CURRENT (A) 16 RATED VOLTAGE / PHASE 230V / 1~ OUTLETS 6x Earth-pin INPUT PLUG Schuko LENGTH HOUSING (mm) 19" REMARKS Colour Black With mounting material Yes Temperature measurement No Ampere meter No With fuse No With LED indication No With display No SNMP No Control function No With meter No Switchable No Mains filter No Supply voltage 230 V Height 44.4 mm Number of height units 1 Number of other socket outlets 9 Number of socket outlets Swiss standard type 25 0 Number of socket outlets Swiss standard type 23 0 Number of socket outlets Swiss standard type 15 0 Number of socket outlets Swiss standard type 13 0 Number of socket outlets British Standard BS1363 0 Number of C20 socket outlets 0 Number of C19 socket outlets 0 Number of C13 socket outlets 0 Number of socket outlets with earth pin 0 Number of socket outlets with protective contact CEE 7/3 (type F) 0 Number of miniature circuit breakers (MCB) 0 Number of phases 1 Electrical connection Connection cable with plug Mounting direction Horizontal Mounting dimension (standardised) 482.6 mm (19 inch) | |||||||||
| PLA416-8RC14-PA | PDU 1x16A, 8xEarth pin red, 10A fuse, C14 Power Cord | 10 | 230V / 1~ | 8x Earth-pin | C14 | 19" | red outlets, 10A fuse | ||
MAX. CURRENT (A) 10 RATED VOLTAGE / PHASE 230V / 1~ OUTLETS 8x Earth-pin INPUT PLUG C14 LENGTH HOUSING (mm) 19" REMARKS red outlets, 10A fuse | |||||||||
